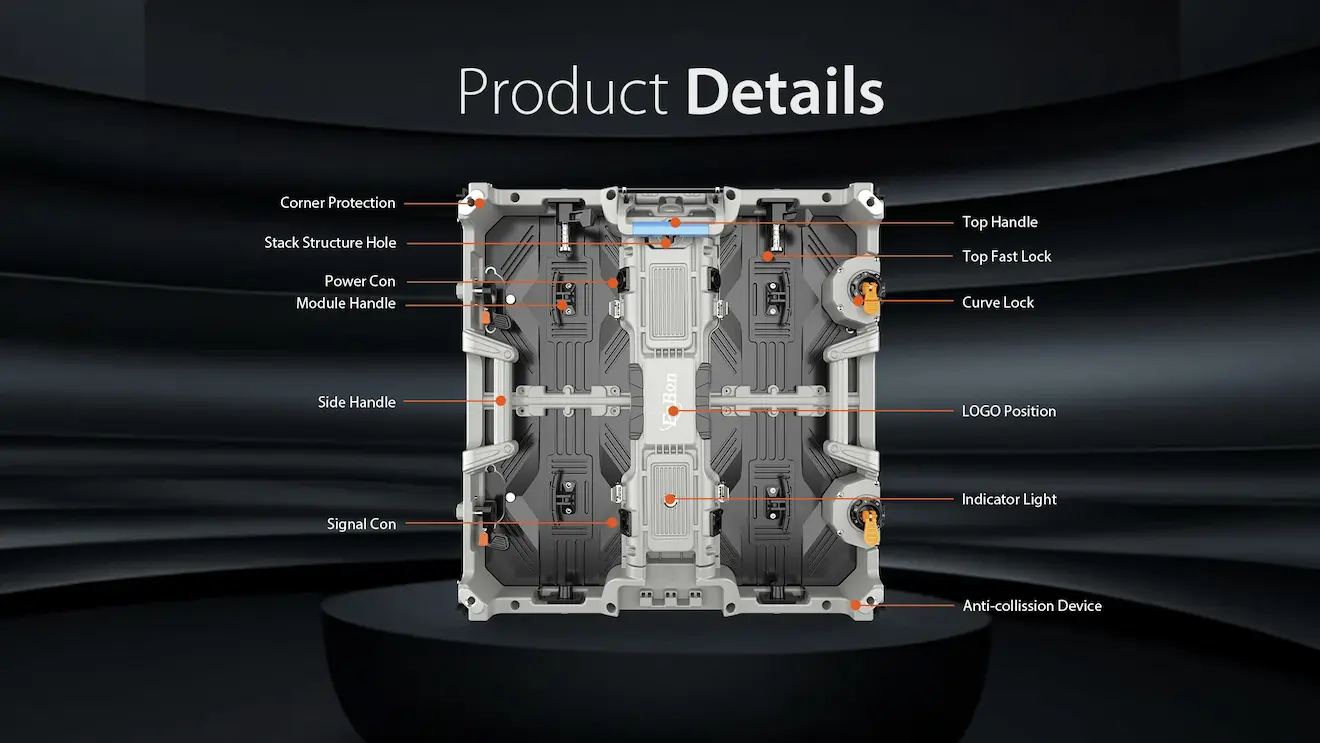

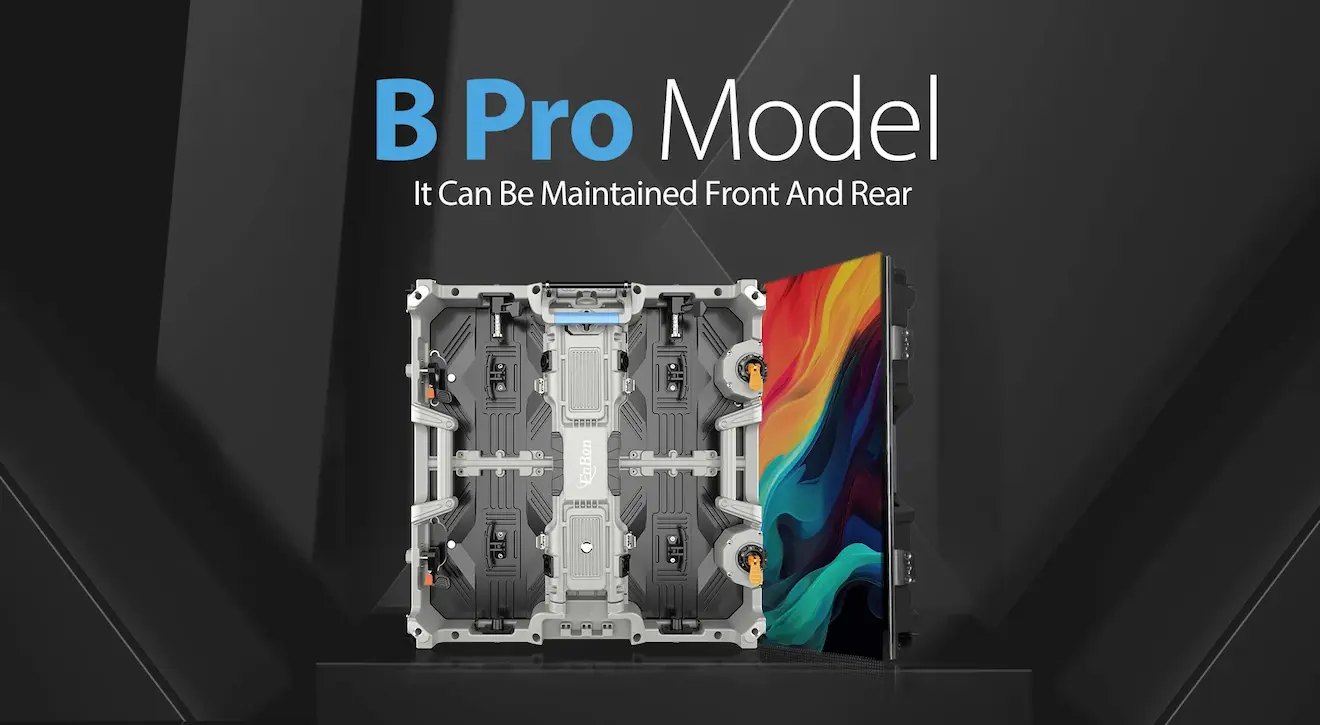

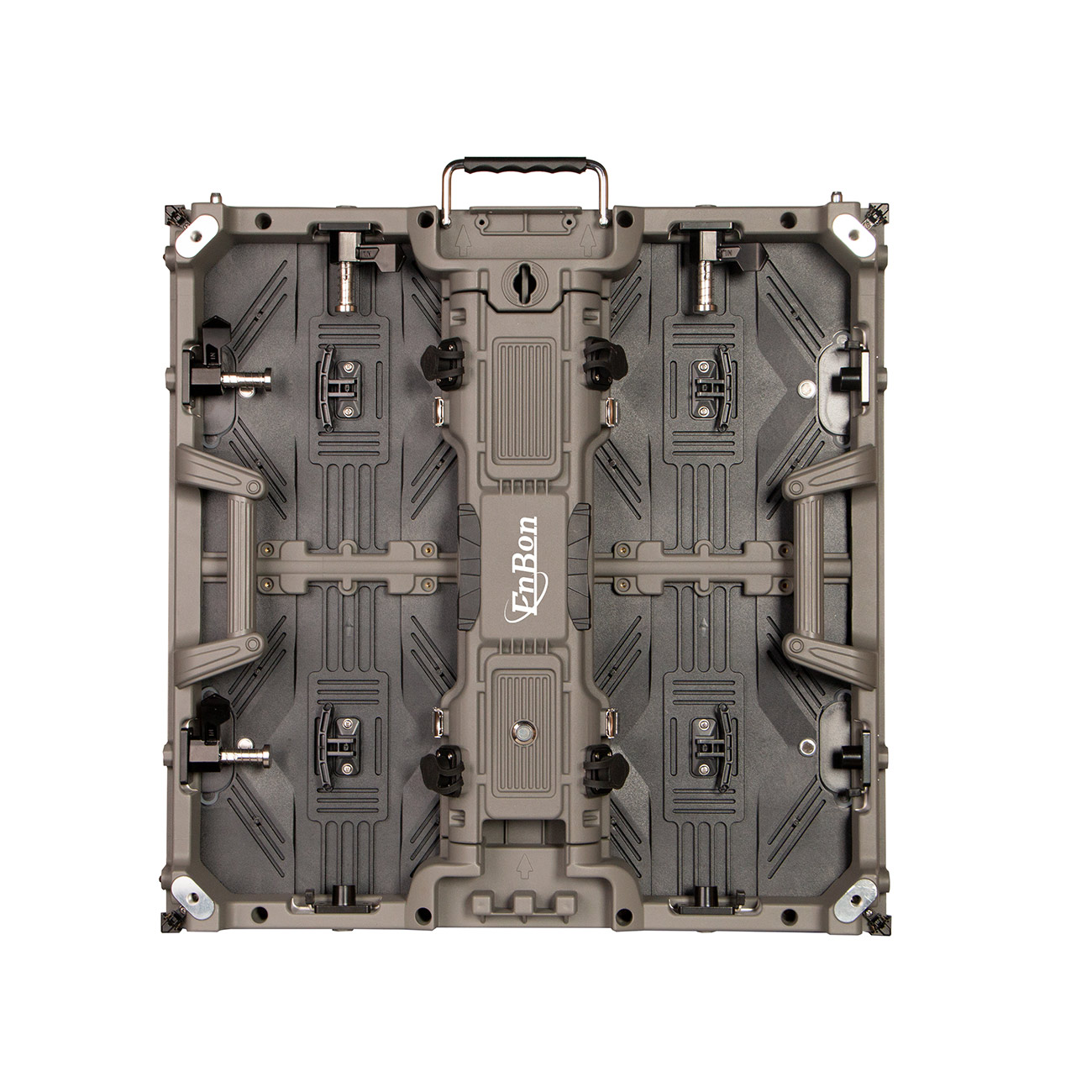

前面および背面からメンテナンス可能

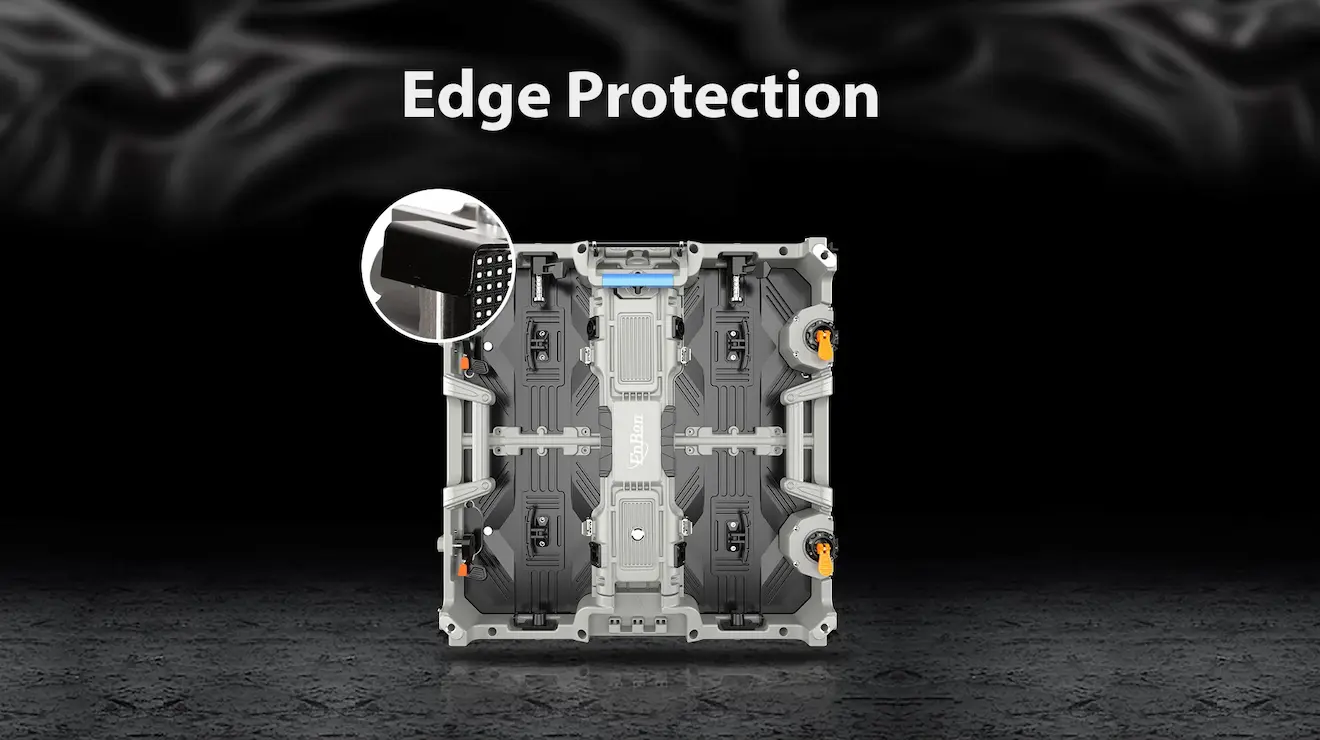

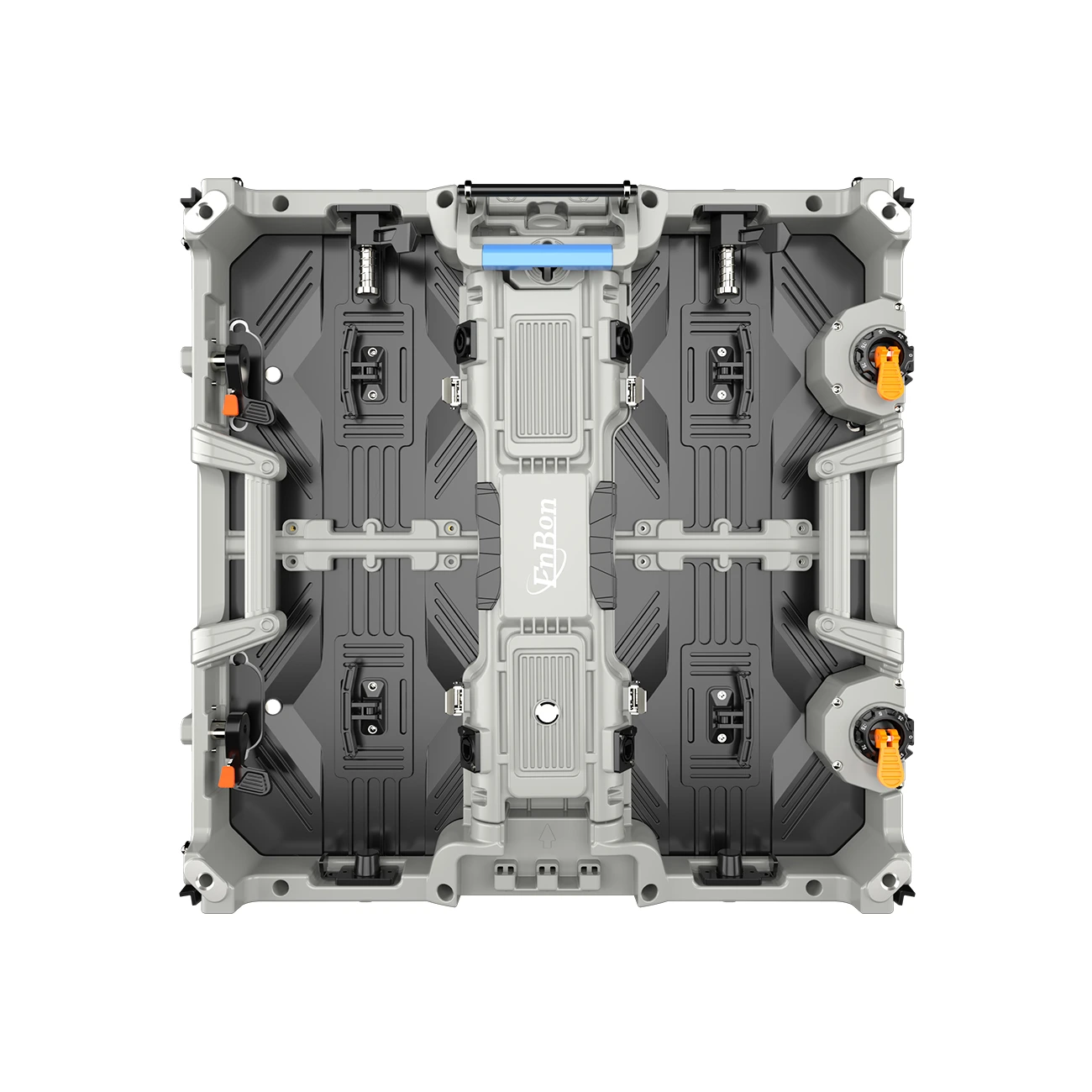

コーナープロテクション
積層構造穴
電源コネクター
モジュールハンドル
サイドハンドル
信号コネクター
トップハンドル

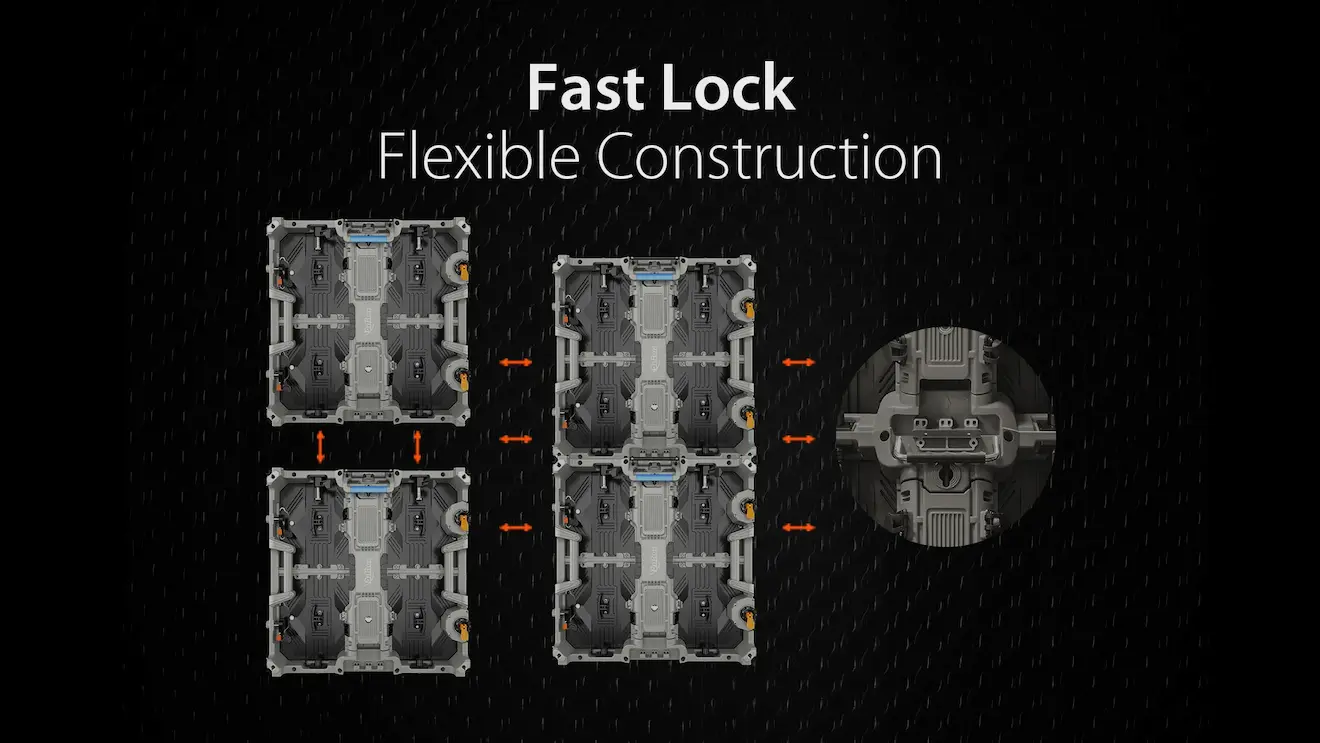

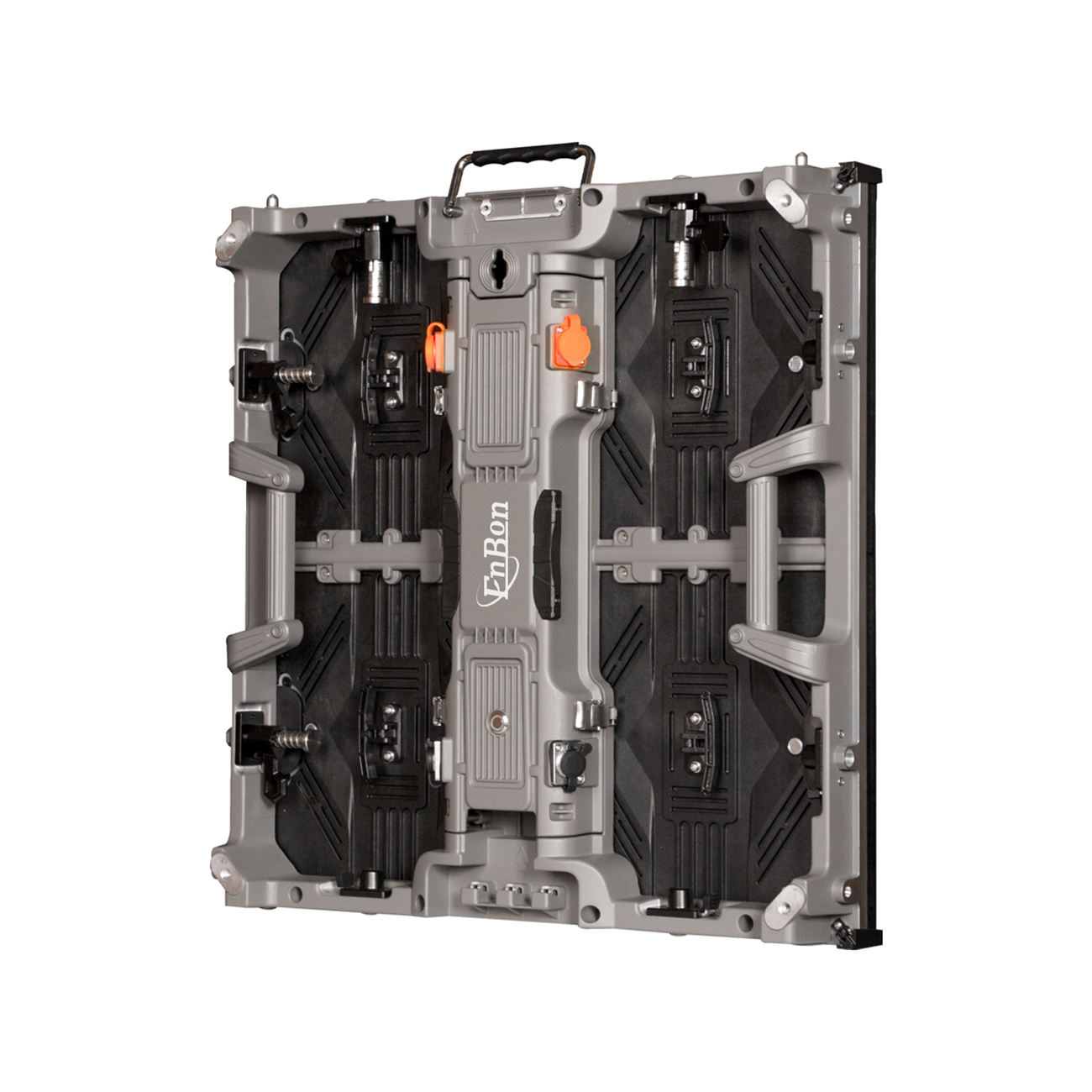

トップファストロック
カーブロック
ロゴ位置
インジケーターライト
衝突防止装置

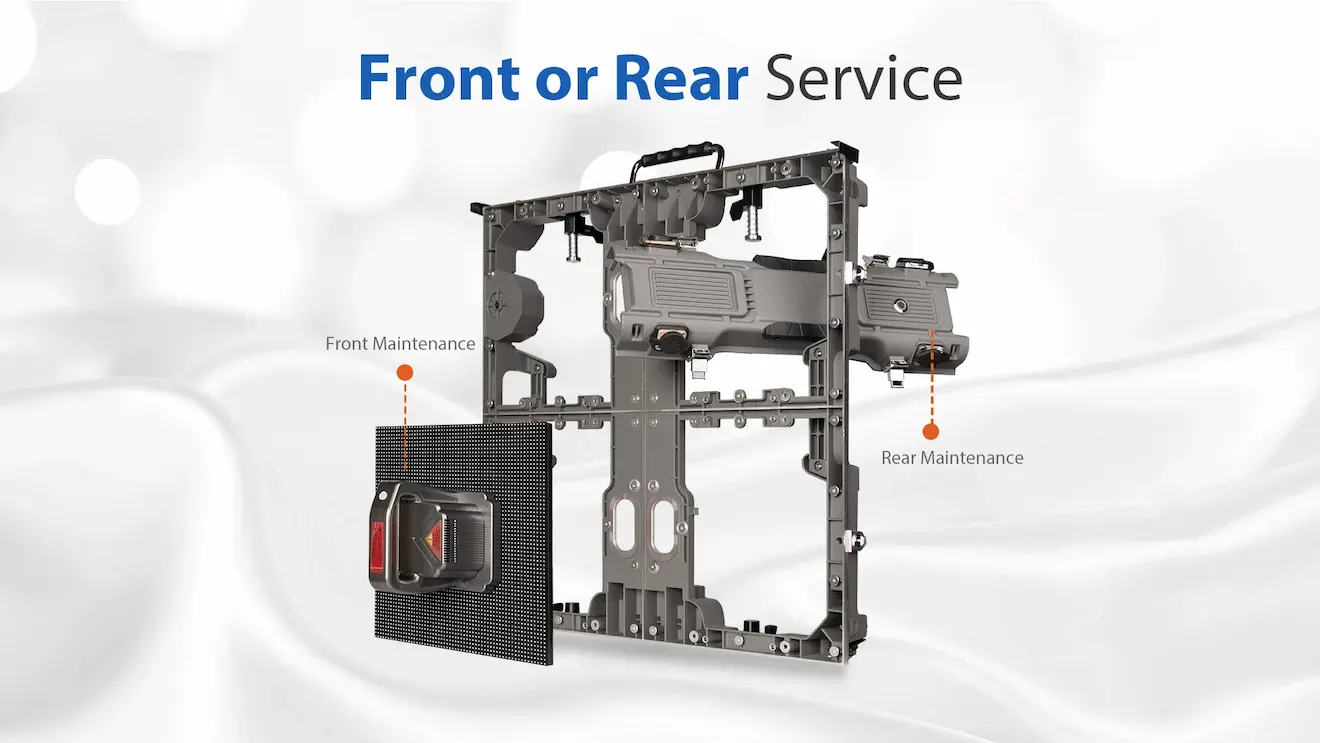

前面メンテナンス
背面メンテナンス
柔軟な構造設計

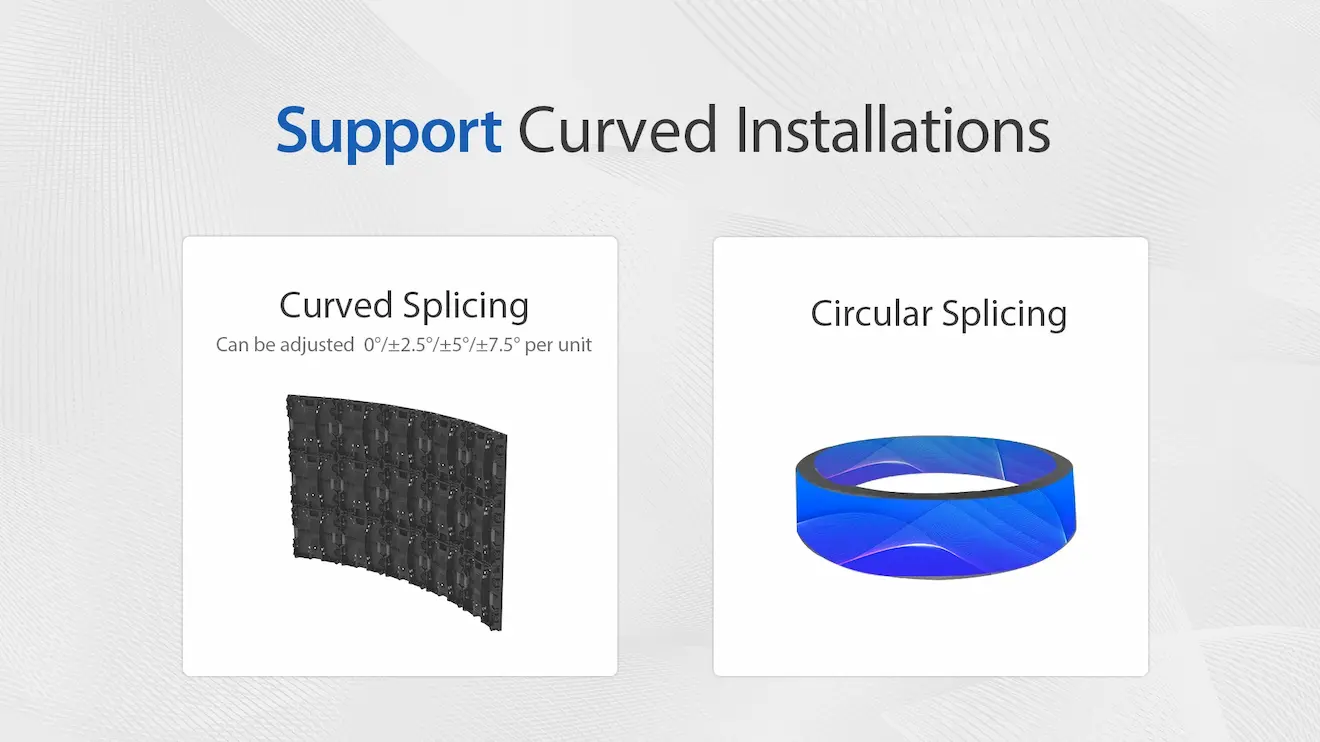

ユニットごとに0°／＋2.5°／＋5°／＋7.5°の調整が可能

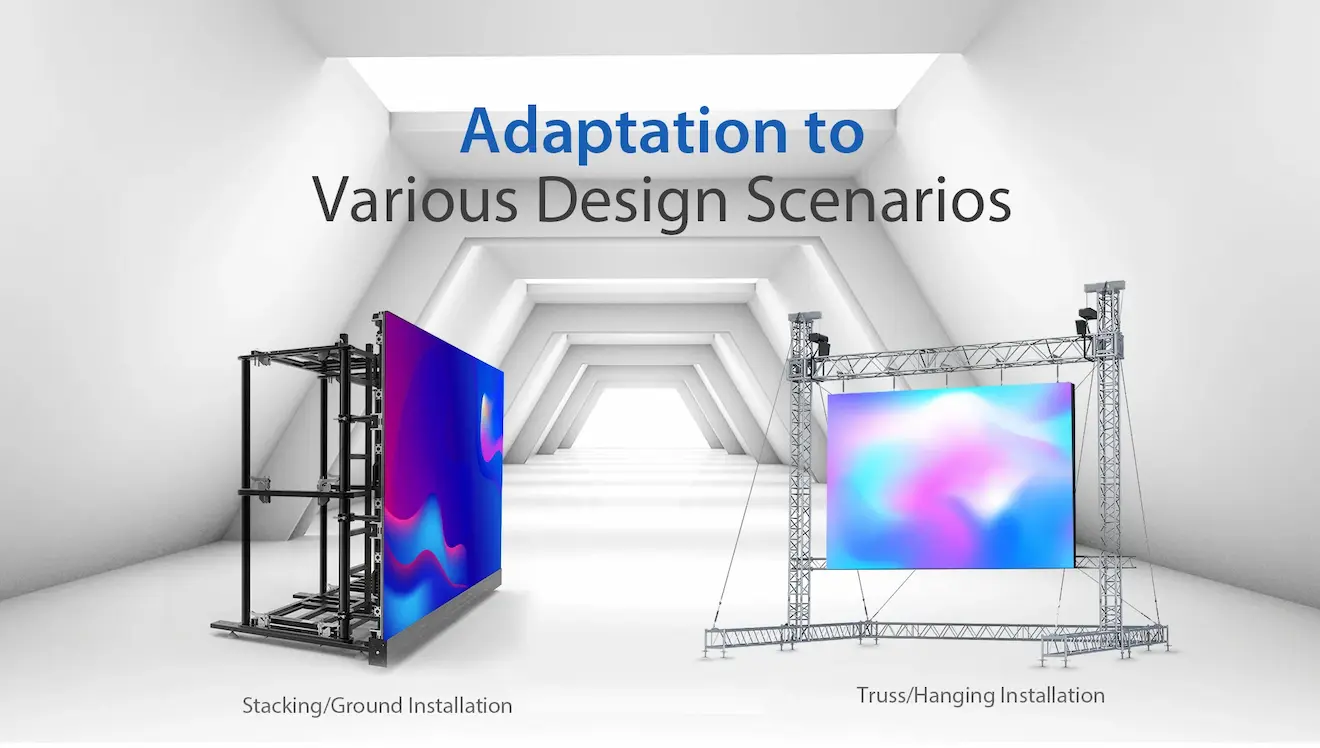

積み重ね／地面設置
トラス／吊り下げ設置
| Item | Indoor | Outdoor | ||||
|---|---|---|---|---|---|---|
| Pixel Pitch | 3 | 3.429 | 3.84 | 3.429 | 3.84 | 4.81 |
| LED Lamp | SMD 2121/2020 | SMD 2121/2020 | SMD 2121/2020 | SMD1921 | SMD1921 | SMD1921 |
| Density (dots/m²) | 111111 | 85048 | 67816 | 85048 | 67816 | 43402 |
| Scan | 32 scan | 21 scan | 15 scan | 21 scan | 15 scan | 10 scan |
| Brightness | 600-1200 nits | 600-1200 nits | 700-1500 nits | 3500-4500 nits | 3500-4500 nits | 3500-4500 nits |
| IP Rating | IP45 | IP65 | ||||
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | ||||
| Refresh Rate(Hz) | 3840 - 7680 | 3840 - 7680 | ||||
| Module Weight | 1 kg | 1 kg | ||||
| Cabinet Weight | 9 kg | 10 kg | ||||
| Module Size (mm) | 288*288 | 288*288 | ||||
| Cabinet Size (mm) | 576*576*88 | 576*576*88 | ||||
| Module Pixel | 96*96 dots | 84*84 dots | 75*75 dots | 84*84 dots | 75*75 dots | 60*60 dots |
| Cabinet Pixel | 192*192 dots | 168*168 dots | 150*150 dots | 168*168 dots | 150*150 dots | 120*120 dots |
| Max Power | 500 w/sqm | 580 w/sqm | ||||
| Average Power | 165 w/sqm | 195 w/sqm | ||||
| Receiving Card | Novastar A5S Plus/Novastar A10S Pro | Novastar A5S Plus/Novastar A10S Pro | ||||
| Maintenance Method | Front & Rear Maintenance | Front & Rear Maintenance | ||||
| Connection | Hardlink | Hardlink | ||||
| Viewing Angle | H140 (+70/-70) deg V140 (+70/-70) deg | H140 (+70/-70) deg V140 (+70/-70) deg | ||||
| Control Way | Synchronous / Asynchronous | Synchronous / Asynchronous | ||||
| Gray Scale | 13-16 bit | 13-16 bit | ||||
| Operating System | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI | ||||
| Work Humidity | 10% - 90% | 10% - 90% | ||||
| Work Temperature | -20 ~ +65°C | -20 ~ +65°C | ||||
LED Module |
|
| Pixel Pitch | Indoor: P3, 3.429, 3.84 Outdoor: P3.429, P3.84, P4.81 |
|---|---|
| LED Lamp | Indoor: SMD2121/2020 Outdoor: SMD1921 |
| Density (dots/m²) | Indoor: 111111, 85048, 67816 Outdoor: 85048, 67816, 43402 |
| Scan | Indoor: 32, 21, 15 scan Outdoor: 21, 15, 10 scan |
| Brightness | Indoor: 600-1200, 700-1500 nits Outdoor: 3500-4500 nits |
| Module Pixel | Indoor: 96*96, 84*84, 75*75 Outdoor: 84*84, 75*75, 60*60 |
| Cabinet Pixel | Indoor: 192*192, 168*168, 150*150 Outdoor: 168*168, 150*150, 120*120 |
Appearance |
|
| Module Size (mm) | 288*288 |
| Cabinet Size (mm) | 576*576*88 |
| Module Weight | 1 kg |
| Cabinet Weight | Indoor: 9 kg Outdoor: 10 kg |
Working Environment |
|
| Work Humidity | 10% - 90% |
| Work Temperature | -20 ~ +65°C |
System Parameter |
|
| Operating System | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI |
| Gray Scale | 13-16 bit |
Power |
|
| Max Power | Indoor: 500 w/sqm Outdoor: 580 w/sqm |
| Average Power | Indoor: 165 w/sqm Outdoor: 195 w/sqm |
Waterproof Grade |
|

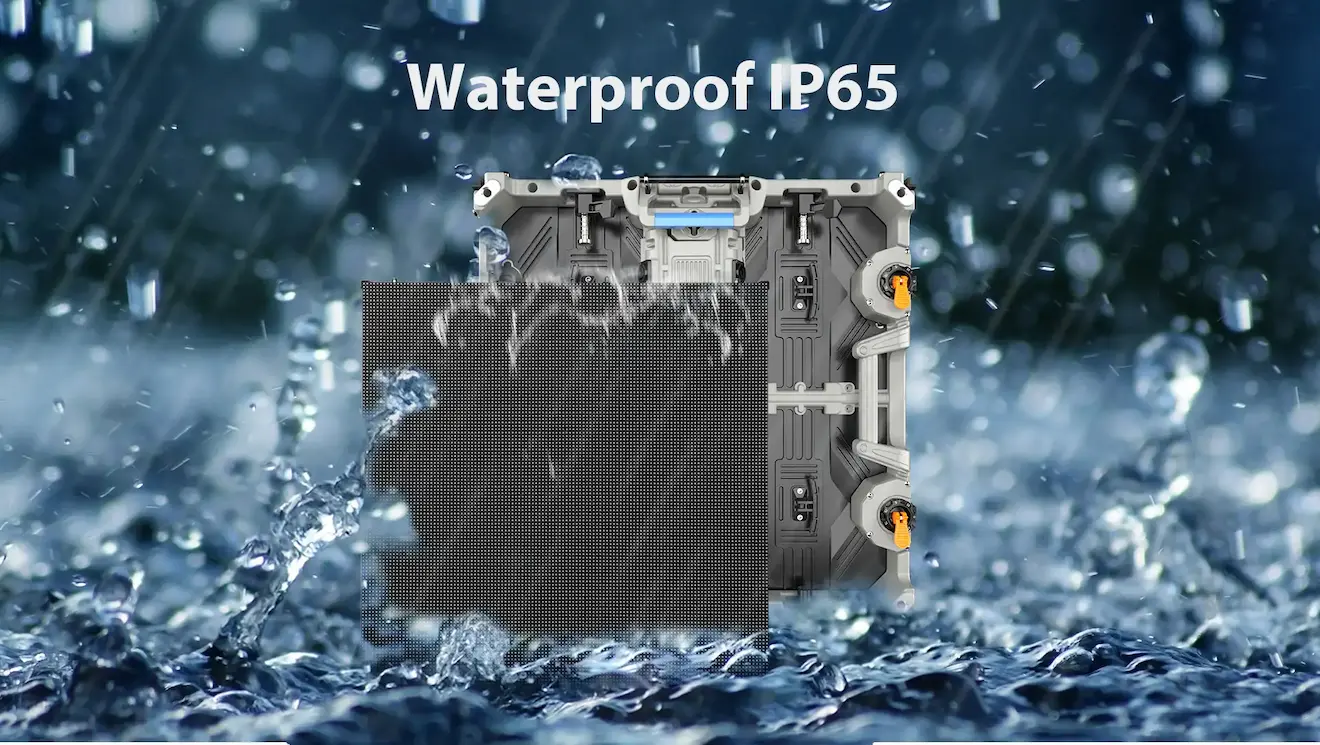

| IP Rating | Indoor: IP45 Outdoor: IP65 |
Control System |
|
| Control Way | Synchronous / Asynchronous |
| Viewing Angle | H140 (+70/-70) deg V140 (+70/-70) deg |
| Refresh Rate(Hz) | 3840 - 7680 |
Other |
|
| Receiving Card | Novastar A5S Plus/Novastar A10S Pro |
| Maintenance | Front & Rear Maintenance |
| Connection | Hardlink |
